JRP-2RD

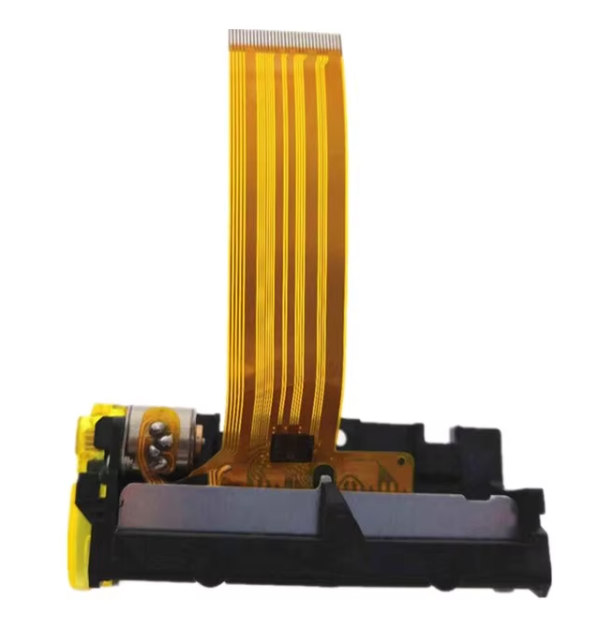

Compatibility APS SS205-V3-H3 2 Inch Printer Mechanism 58mm Thermal Receipt Printer Head for Desktop Printer
Category:
Keywords:
JRP-2RD
Product Description
Product Description
Product Name | 2 inch thermal printer mechanism VTR-2RD |
➜ Long life span | |
➜ Easy paper loading structure | |
➜ 90 degree vertical feed | |
➜ Low noise, strong and durable | |
➜ High printing speed 80mm/s(8.5V) | |
Printing life span | ≥ 50Km |
Dots per line | 384dots |
Product size | 68.1mm x 23.3mm x 25.6mm |
Average resistance of printer head | 176Ω ± 4% |
Paper out detection | Via photo interrupter |
Printer head working power voltage | VH: 3.15~8.5VDC |
Motor driving voltage | 4.20 ~ 8.5VDC |
Paper feed in and out | Curve paper feed out |
Working temperature | 0℃ ~ 50℃ |
Printing method | thermal dot line printing |
Paper width | 58mm |
Printing width | 48mm |
Product weight | 34.2g |
Platen roller fixed type | Detachable main body of printer mechanism easy to load paper |
Head temperature detection | Via thermistor |
Head logic voltage | VDD: 2.7 ~ 5.25VDC |
Mechanical working voltage | 60dB(Max) |
Cutting method | Manual tear paper |
Working humidity | 20% ~85%RH |
Precision | 8dots/mm |
Dot pitch | 0.125mm |
Dot size | 0.125mm x 0.12mm |
Max print speed | 85mm/s(Motor driving voltage 8.50VDC) |
Product driven | Stepping motor(4.20 ~ 10VDC pulse driven)the paper travel distance per step is 0.0625 |
Compatibility | Compatible with APS SS205-V3-H3 printer mechanism |
Scope | Portable printer、desktop cash register printer、cash register、queuing machine、pos machine etc thermal bill printing equipment |
