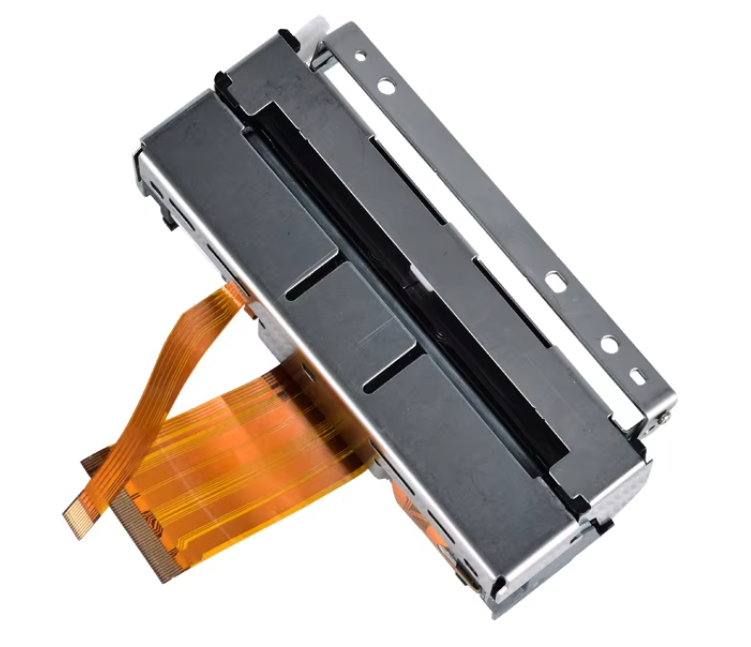

JRP-3RF
Equipped with automatic cutter
135-degree paper feed
High-speed printing 170 mm/s
Low noise, high noise
High precision, long life
Category:
Keywords:
JRP-3RF
Product Description
Product Description
Product Name | 3 inch printer mechanism compatible with CAPD347 |
→ Easy paper loading | |
→ Automatic paper cutting | |
→ 135 degree paper feed | |
→ High printing speed: Max 170mm/s (motor driving voltage is DC 24V) | |
→ Wide printing voltage (~26.4DCV) | |
→ High printing precision (8dots/mm) | |
→ Long mechanical wear life(more than 50km) | |
→ Low noise：brushless magnetic excitation step motor driving, composed of special engineering plastic gears with High Abrasion | |
→ Proof and High and low temperature resistance, make the extremely low transmitting noise. | |
→ Applicability: VTR-3RF series of printer mechanism is compatible with Japanese JingGong CAPD347C on installation structure and electrical interface; it can be used in Mini Thermal Paper Printer, Thermal Paper Printing electronic cash register etc. | |
Print Method | Thermal dot line printing |
Print width(mm) | 72mm |
Precision(dots/mm) | 8dots/mm |
Dots per line | 576dots/line |
Paper width(mm) | 80 + 0.1mm |
Dot pitch(mm) | 0.125mm |
Dot sizes | 0.125 x 0.12mm |
Max print speed | 170mm/s |
Feeding accuracy | 0.0625mm |
Head temperature detection | Via Thermistor |
Paper out detection | Via photo interrupter |
Printer roller in place detection | Mini detection switch |
Cutter reset detection | Photoelectric switch |
Head driving voltage(DCV) | -26.4(Standard 24VDC) |
Head logic voltage(DCV) | 4.75~5.25 |
Paper feed tractor motor driving voltage(DCV) | 21.6~26.4(VDC) |
Cut paper motor driving voltage | 21.6~26.4(VDC) |
Paper feed in & out | Curve paper feed out |
Cut paper method | Auto cutter |
Operation temperature | +0℃~50℃(No condensation） |
Operation humidity | 20%~85%RH(No condensation） |
Storage temperature | -20℃~60℃(No condensation） |
Storage humidity | 5%~95%RH(No condensation） |
Mechanical Noise | Less than 60dB(A-weighted RMS) |
Tractive force to paper | ≥0.49N(50gf) |
Grasping braking force to paper | ≥0.49N(50gf) |
Life span | Mechanical structure and print head wear life is more than 50km, electrical life of the print head is 100 million pulses or more ( In the rated condition) |
Automatic cutter 500 thousand times | |
Weight(g) | 150g |
Dimensions | (105.1 ± 0.2)mm * (44 ± 0.2)mm * (27.4 ± 0.2)mm |
