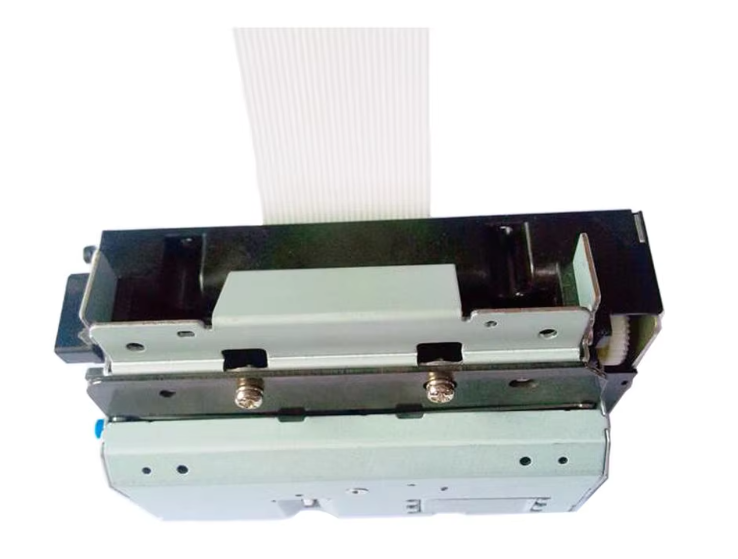

JRP-3RB (Horizontal)
Easy paper loading
90-degree vertical paper feed
Equipped with an automatic paper cutter
High-speed printing at 250 mm/s
Category:
Keywords:
JRP-3RB (horizontal)
Product Description
Product Description
|
Product Name |
3-inch print mechanism, compatible with LTPF347F-C576-E |
|
→ Easy to load paper |
|
|
→ Detachable paper-pressing plate design |
|
|
→ Optional automatic cutter |
|
|
→ High-speed printing at 250 mm/s |
|
|
→ Service life: 100 kilometers |
|
|
→ 90-degree perpendicular paper feed |
|
|
Printing method |
Thermal dot matrix printing |
|
External dimensions |
115.5mm x 73mm x 45mm |
|
Paper path |
Curve paper output |
|
Paper-pressing board fixing method |
Elastic hook fastening allows it to be detached from the main mechanism for easy paper loading. |
|
Paper-out detection |
Detect the middle section using a photoelectric switch. |
|
Paper feed motor drive voltage |
24 ± 10% VDC
|
|
Points per line |
640 points |
|
Operating temperature |
0°C~50°C |
|
Average resistance value of the thermal head |
650Ω ± 4%
|
|
Mechanical noise |
60 dB (maximum) |
|
Print life |
≥100 kilometers |
|
Product weight |
315 grams |
|
Printer paper width |
72 mm (maximum print width of TPH: 80 mm) |
|
Paperboard Position Detection |
Through a mechanical switch
|
|
Printhead Temperature Detection |
Through the thermistor
|
|
Paper-cutting motor drive voltage |
24 ± 10% VDC |
|
Paper width |
79.5 ± 0.5 mm |
|
Operating humidity |
20%~85%RH |
|
Accuracy |
8 points per millimeter |
|
Dot pitch |
0.125 mm |
|
Point size |
0.125 mm x 0.12 mm |
|
Paper-cutting method |
Manual paper tearing (AF stands for fully automatic paper cutting, AP stands for automatic paper cutting—after printing is complete, the paper remains connected) |
|
Printhead Drive Power Supply Voltage |
VH: 21.6 ~ 26.4 VDC (typical value: 24 V) |
|
Printhead Logic Voltage |
VDD: 4.75 ~ 5.25 (typical value: 5 V) |
|
Print speed (maximum) |
250 mm/s (motor drive voltage: 24 VDC) |
|
Product-driven |
Stepper motor (24 VDC pulse-driven), with a paper feed distance of 0.0625 per step. |
|
Compatibility |
Compatible with the Seiko LTPF347F-C576-E thermal print head |
|
Scope of Application |
Desktop cash registers, cash registers, queue management systems, POS terminals, and other thermal receipt printing devices |
