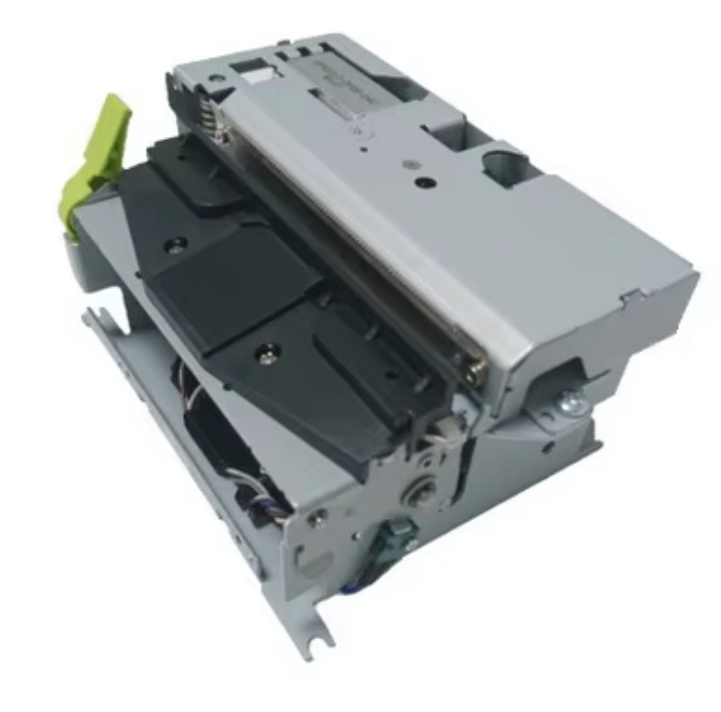

JRP-3RA
Standalone pressure plate design
Service life: 100 km
High-speed printing
150 mm/s
Category:
Keywords:
JRP-3RA
Product Description
Product Description
|
Product Name |
3-inch print mechanism, compatible with M-T532AF/AP |
|
→ Easy to load paper |
|
|
→ Detachable paper-pressing plate design |
|
|
→ Optional automatic cutter |
|
|
→ High-speed printing at 250 mm/s |
|
|
→ Service life: 100 kilometers |
|
|
→ 90-degree perpendicular paper feed |
|
|
Printing method |
Thermal dot matrix printing |
|
External dimensions |
128mm x 93mm x 58mm |
|
Paper Path |
Direct in, direct out |
|
Paper-pressing plate unit fixed |
It can be disassembled at the basic mechanism level for easy paper installation. |
|
Paper Testing |
It can be removed from the basic printing mechanism using a reflective photoelectric switch. |
|
Paper motor drive voltage |
24 ± 10% VDC |
|
Points per line |
576 points |
|
Operating temperature |
0°C to 50°C |
|
Average resistance value of the thermal head |
650Ω ± 4% |
|
Mechanical noise |
60 dB (maximum) |
|
Print life |
≥100 kilometers |
|
Product weight |
537 grams |
|
Print paper width |
72 millimeters |
|
Print roller in-place detection |
Micro detection switch |
|
Printhead Temperature Detection |
Through the thermistor |
|
Paper-cutting motor drive voltage |
24 ± 10% VDC |
|
Paper width |
79.5 ± 0.5 millimeters |
|
Operating humidity |
20%–85% RH |
|
Accuracy (points/mm) |
8 points per millimeter |
|
Dot pitch (mm) |
0.125 millimeters |
|
Point size |
0.125 x 0.12 millimeters |
|
Cutting method |
Manual paper tearing (AF stands for fully automatic paper cutting, AP stands for automatic paper cutting—maintains connection after printing is complete) |
|
Printhead Drive Power Supply Voltage |
VH: 2.16–26.4 VDC (typical value: 24 V) |
|
Printhead Logic Voltage (DCV) |
VDD: 3.13–3.47 VDC (typical: 3.3 V) / 4.75–5.25 V (typical: 5 V) |
|
Print speed (maximum) |
150 mm/s (motor drive voltage: 24 VDC) |
|
Product-driven |
Stepper motor (24 VDC pulse-driven), with a paper feed distance of 0.0625 per step. |
|
Compatibility |
Compatible with EPSON M-T532AF/AP print mechanism |
|
Scope of Application |
Portable/desktop cash registers, receipt printers, queuing systems, POS terminals, and other thermal printing devices |
