JRP-2RJ
Long lifespan, easy paper loading, 135-degree paper feeding, low noise, high printing speed of 100 mm/s, suitable for receipts and labels
Category:
Keywords:
JRP-2RJ
Product Description
Product Description

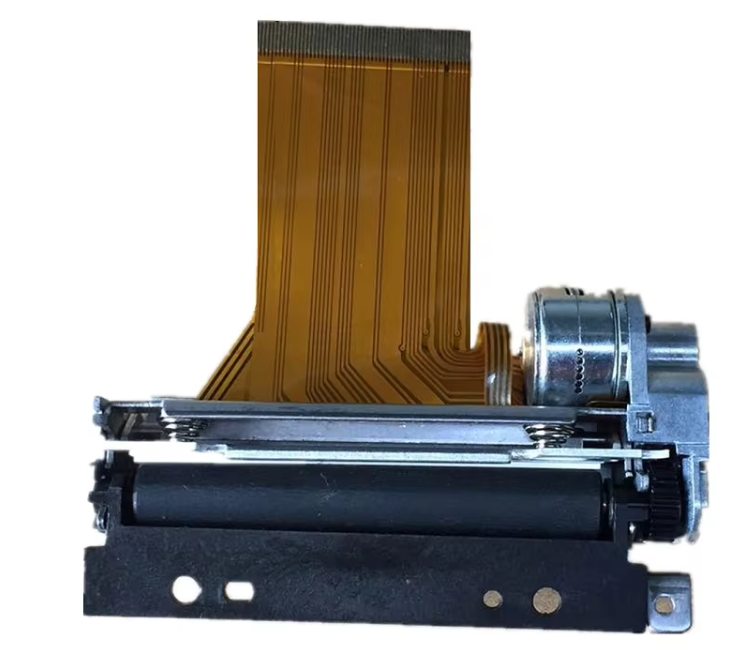

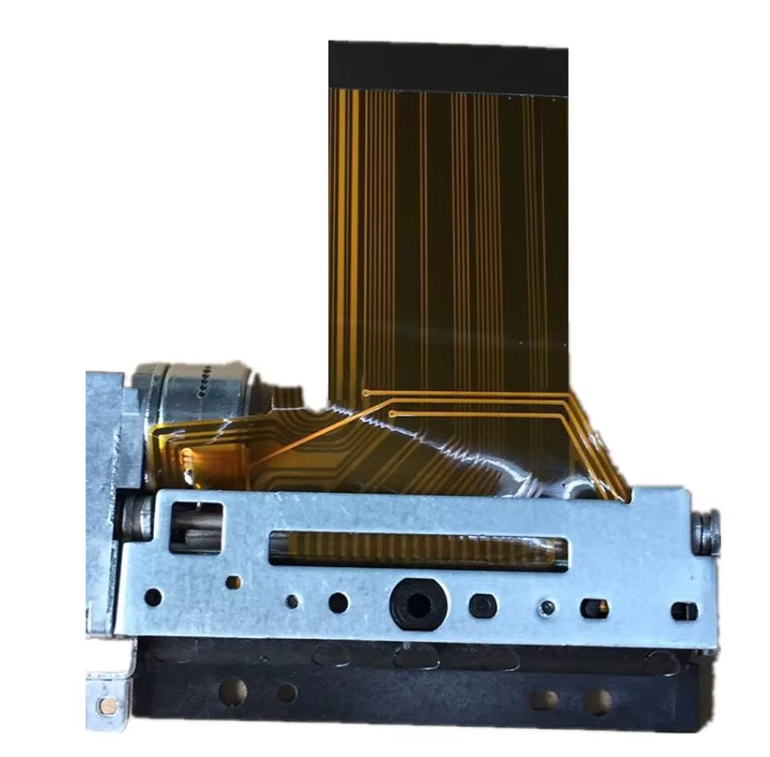

Product Name | 2 inch printer mechanism compatible with LTPD-245A-384-E |
→ Long life span | |
→ Easy paper loading | |
→ 135 degree vertical feed | |
→ Low noise, durable | |
→ High-speed printing 100mm/sec (9V) | |
Printing speed | 100mm/s |
Printing dots number of per line | 384 dots |
Periphery dimension | (69 + 1.5mm) x (30 + 1.5mm) x (15 + 0.5mm) |
Average resistance of printer head | 176Ω ± 4% |
Paper detection | Via a photo interrupter |
Printer head working power voltage | VH:3.15～8.50VDC |
Motor voltage | 4.20～8.50VDC |
Storage temperature | -20℃~60℃ |
Operating temperature | 0℃-50℃ |
Printing method | Thermal dot line printing |
Paper width | 58mm |
Printing width | 48mm |
Weight | 40g |
Platen unit's fixation | May be off the basic mechanism to achieve installing paper easy |
Thermal head temperature detection | Via thermistor |
Printer head working logic voltage | VDD：2.7-5.25VDC |
Working voltage | 60dB(Max) |
Storage humidity | 5%-95%RH |
Operation humidity | 20%-85%RH |
Precision(dots/mm) | 8dots/mm |
Dot pitch(mm) | 0.125mm |
Dot sizes | 0.125 x 0.12mm |
Printer head life span | Mechanical structure and print head Wear life is more than 50km, electrical life of the print head is 100 million pulses or more(In the rated condition) |
500 thousand times | |
Compatibility | Japanese JingGong printer head LTPD-245A-384-E |
Scope | Mini Thermal Paper Printer, Thermal Paper Printing electronic cash register etc. |
